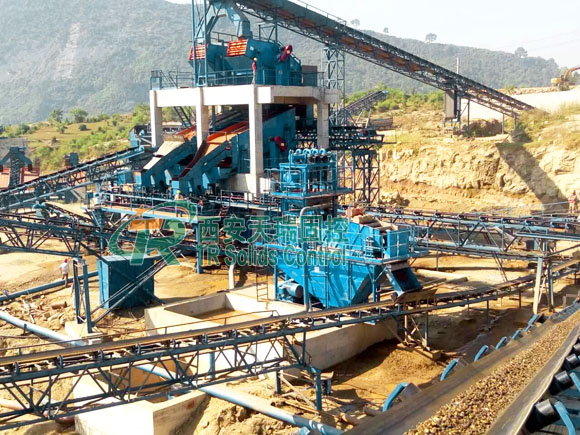

Tunnel Boring Mud Recovery System
High Quality Tunnel Boring Mud Recovery System More »
Drilling Waste Managemnet System
Drilling Waste Managemnet System is used for taking drilling fluids from the drilling cuttings and clean the fluids for resuse. More »
Desander is The Second Class Equipment in Solid Control System
Drilling fluid desander is a kind of hydrocyclone desander composed of hydrocyclone and shale shaker. It is the second class solid control equipment to treat drilling fluids, mainly used for separating solid particles with size 47 ~ 76μm.
Drilling fluid desander, mud desander, desander for oil & gas drilling, top quality desander
Our TRCS series desander overcomes shortcomings of the original sand removal process. The hydrocyclone of desander is provided with a rotating component, and its cylindrical wall is with a separation window. The upper cylinder wall of the rotating member, a set of tapered grooves and liquid inlet pipe constitute drilling fluid lifting component. Impeller of desander is set at the interior of the component, and sand regulator controls the amount of sand. The drilling fluid enters the rotating component from the inlet pipe, after centrifugal rotation of the blade, the liquid rises to the separation window when the sand is separated from the drilling fluid, the sand is discharged into the sanding cone through the separation window. The separated drilling fluid enters the lifting component, and drilling fluid is discharged into the drilling tank by the drain of the conical groove. The sand in the cone is discharged from the sand outlet controlled by the sand regulator device and the separation is completed.
Drilling desander for HDD, oilfield mud desander, TRCS series desander, excellent desander
Technical data of TRCS series desander:
| Model | TRCS200-1S/2S | TRCS250-1S/2S | TRCS250-3S | TRCS300-1S/2S |
| Capacity | 60m3/120m3/h | 100m3/200m3/h | 300m3/h | 120m3/240m3/h |
| Cyclone Specs | 8” | 10” | 10” | 12” |
| Cyclone Qty | 1nos/2nos | 1nos/2nos | 3nos | 1nos/2nos |
| Working Pressure | 0.25-0.4Mpa | |||
| Inlet Size | DN125mm | DN150mm | DN150mm | DN150mm |
| Outlet Size | DN150mm | DN200mm | DN200mm | DN200mm |
| Separation Point | 45μm -75μm | |||
| Bottom Shaker | TRTS60 | TRTS60 | TRZS752 | TRZS752 |
| Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 1835*1230*1810mm |
| Weight | 570kg/620kg | 670kg/760kg | 1300kg | 1380kg |
| Remark | All desilter could be customized without bottom shaker. | |||
Mud desander in drilling site, hydrocyclone desander, solid control mud desander
TR Solids Control is your one-stop solution for solid control equipment. We specialize in the design and manufacture of high performance shale shaker, mud cleaner, mud agitator, mud gun, jet mud mixer, centrifugal pump, submersible slurry pump etc. and mud mixing system for oil & gas drilling, HDD trenchless, shield & bored pile. You best choice starts from TR Solids Control!
Contact Us: Maggie Xian|Sales Manager
Sales office：No.10 West of North 2nd Ring Road Xi’an City.
Manufacture: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel：+86-29-86332919
Call：+86-15229092385
E-mail: maggie@trsolidscontrol.com
Desilter Is The Third Solid Control Equipment To Treat Drilling Fluids
Desilter is the third solid control equipment to treat drilling fluids. It is composed of several sets of hydrocyclones based on customer’s capacity requirements. As for hydrocyclones, it is divided into desander hydrocyclone and desilter hydrocyclone according to different hydrocyclone diameter. Generally below 6” hydrocyclone combination is called desilter. In oil & gas drilling, 4” or 5” hydrocyclone combination are common for desilter, and 4” is the most used. Our TRCN series desilter is mainly used for separating 15-44μm solid particles in drilling fluids. At present, TRCN series desilter manufactured by TR Solids Control is widely used in oil & gas drilling, horizontal directional drilling, coal bed methane drilling, bored piling, tunnel and other trenchless project.
Mud desilter, desilter for oil & gas drilling, China desilter manufacturer
Technical data of TRCN series desilter:
|
Model |
TRCN100-4N | TRCN100-6N/8N | TRCN100-12N/16N | TRCN100-20N |
|
Capacity |
60m3 | 90m3/120m3 | 180m3/240m3 |
300m3 |
|
Cyclone Specs |
4” |
|||
|
Cyclone Qty |
4 pcs | 6pcs/8pcs | 12pcs/16pcs |
20pcs |
|
Working Pressure |
0.25-0.4Mpa |
|||
|
Inlet Size |
DN100mm |
DN125mm |
DN150mm |
DN150mm |
|
Outlet Size |
DN125mm | DN150mm | DN200mm |
DN200mm |
|
Separation Point |
15μm -44μm |
|||
|
Bottom Shaker |
TRZS60 | TRZS60 | TRZS752 |
TRZS703 |
|
Dimension |
1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm |
2770*1785*1810mm |
|
Weight |
550kg | 560kg/580kg | 1150kg |
1950kg |
| Remark |
All desilter could be customized without bottom shaker. |
|||
Awesome desilter, drilling fluid desilter, hydrocyclone desilter, mud desilter, TRCN desilter exporter
TR Solids Control is well-known desilter designer and manufacturer in China. We will provide our clients high quality product with reasonable price. At the same time we offer good performance desander, mud cleaner, shale shaker, decanter centrifuge, jet mud mixer, vacuum degasser, mud agitator, shear pump, screw pump, centrifugal pump, and mud recycling system for oil & gas drilling, tunnel construction, bored pile project, HDD trenchless etc. You are welcome to consult and visit us at any time!
