Shale Shaker & Mud agitator for Drilling Waste Management

Recently, 2pcs TRZS703 high-frequency shale shakers and 8pcs TRJBQ11 mud agitators were finished the final inspection and package in TR workshop. They are on the way to water-based drilling waste management site. TRZS703 shaker is one of linear motion shale shakers in our company. Its processing capacity is 130m³/h, and supporting motors are two 2.2kw explosion-proof motors. Screen specifications are 700mm×1250mm×3 pcs. The screen area is 2.6㎡, and adjustment angle of the shaker box is: -3°~+3°. We can adjust the angle of shaker box to control the degree of dryness and wetness of mud at the outlet. Motor power of our TRJBQ11 mud agitator is 11kw with explosion-proof motors.

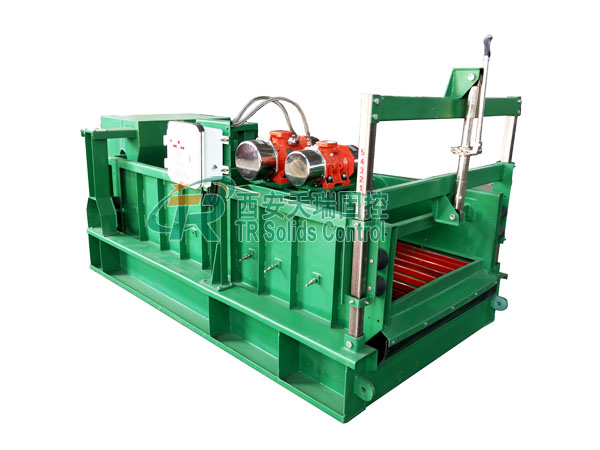

Drilling fluid shale shaker, oilfield mud agitator

Shale shakers and mud agitators are completed the final package.

TR Solids Control is a professional manufacturer of solid-liquid separation plant in China for more than 10 years. Our company has been devoted to the research of solid-liquid separation for a long time and has achieved great results in this area. The shale shakers and mud agitators ordered by our customer are all drilling waste management modules used in shale gas drilling and production. Larger particles in the waste slurry are separated by shale shakers, thereby reducing the pressure of filter press part and also protecting the filter cloth. Mud agitator is used in mud storage tank and feeding tank to prevent the mud from settling in the tank.

Drilling waste management, oilfield solid control unit

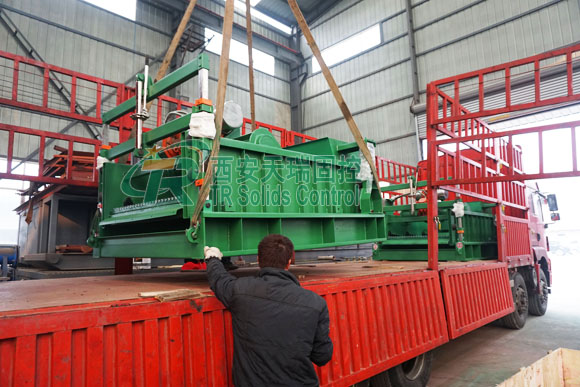

Linear shale shakers and mud agitators are shipped to drilling waste management.

The solid-liquid separation equipment manufactured by TR Solids Control can be applied to oil & gas mining, drilling waste management, horizontal directional drilling, subway shielding, city piling, and other different drilling construction sites. If you have any requirement recently, welcome to contact TR sales team at any time. We can customize suitable solid-liquid separation unit or system according to your construction requirements.

Contact Us: Maggie Xian|Sales Manager
Sales office: No.10 West of North 2nd Ring Road Xi’an City.
Factory Add.: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel:+86-29-86332919
Mob.:+86-13186019625
E-mail: maggie@trsolidscontrol.com

Web:www.trsolidscontrol.com

www.drillingmud-system.com

Brief Introduction of Linear Shale Shaker

Linear Shale Shaker is the third generation of vibrating shaker. It uses the horizontal excitation of vibration motor as vibration source, material on the sieve up forward for linear motion, also known as linear shaker. Linear Motion Shaker is the most widely used shale shaker. All shale shakers designed by ourselves, including Balanced Elliptical motion Shaker also Linear Motion shaker. All shaker screens can be fit on shakers by wedge blocks or hooks. Meanwhile we can customize according to customer’s demand, linear motion, or balanced elliptical motion and double-track movement.

Good price shale shaker, high quality shale shaker, API standard shale shaker

TRZS585 shale shaker, drilling fluids shale shaker, mud shale shaker for sale

Specification of TR Linear Motion Shaker:

 Model  TRZS703  TRZS2000  TRZS585
 Vibrating Model  Linear  Linear  Linear
 Motor Power  2×1.5KW  2×1.72KW  2×1.72KW
 Vibrating Strength  ≤7.0G  ≤7.5G  ≤7.5G
 Amplitude  6.0~7.2mm  6.0~7.2mm
 Capacity  527GPM  615GPM  615GPM
 Deck Adjustment  -1°~5°  -1°~5°  -1°~5°
 Screen of Deck  3  3  4
 Electric  380V/50HZ,460V/60HZ or Customized
 Decibels  <85db  <85db  <85db
 Ex Standard  ExdIIBt4 / IEC EX/ ATEX  ExdIIBt4 / IEC EX/ ATEX  ExdIIBt4 / IEC EX/ ATEX
 Dimension  2800X1785X1750  2800X1600X1690  2800X1600X1690
 Weight  1550kg  1850kg  1750kg
 Remarks Treating capacity test from mud 1.2g/cm ³density,viscosity45s﹠60mesh screen
Linear shale shaker for HDD, TRZS series shale shaker, Drying shaker

Solids control shale shaker, shale shaker for mud cleaning, factory price shale shaker

Above all, as the main professional manufacturer of solids control equipment in China, TR Solids Control is well-known for linear motion shale shaker. In addition, we also supply balanced elliptical motion shale shaker, drying shaker and other solids control product like decanter centrifuge, mud cleaner, mud agitator, mud gun, jet mud mixer, centrifugal pump, screw pump, also submersible slurry pump, etc. If any inquiry lately, please contact with us!

Contact Us: Maggie Xian|Sales Manager
Sales office: No.10 West of North 2nd Ring Road Xi’an City.
Manufacture: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel:+86-29-86332919
Call:+86-13186019625
E-mail: maggie@trsolidscontrol.com

Web:www.trsolidscontrol.com

www.trsolidcontrol.com

www.drillingmud-system.com

www.chinasolidscontrol.com

TR Shale Shaker for Oil and Gas Drilling

Shale shaker is the first stage of solids control equipment in drilling purification system. It can remove cuttings above 75 μm brought from the drilling well to leave the liquid with smaller particles into the tanks below, which will flow into next grade solids control equipment for further treatment. TR Solids Control is a lead and professional designer and manufacturer of shale shaker in China. According to vibration motion, it is divided into liner motion shale shaker and balanced elliptical motion shale shaker, drying shaker. Currently our shale shaker is widely used in oil and gas drilling.

Linear motion shale shaker, large capacity shale shaker, API shale shaker

Drying shale shaker, drilling fluids shale shaker, China shale shaker supplier

Main Features of TR Shale Shaker

  • Martin or OLI vibration motor.
  • Hopper type feed mode reduces feed speed.
  • Screen box angle is mechanical and adjustable.
  • Vibration strength is 7.5G, adjustable.
  • Wedge-type compaction device facilitates fast replacement of screen.
  • Schneider or Siemens electrical components.​
  • Overall heat treatment, long time work.
Factory price shale shaker, high G force shale shaker for sale

Mud shale shaker, balanced elliptical shale shaker, high efficiency shale shaker

Technical Parameters of TR Shale Shaker

(Model)

TRPS703 TRPS585-4 TRZS703 TRZS585
Vibration Motion Balanced Elliptical Motion

Linear Motion

Treatment Capacity

130m³/h 140m³/h 120m³/h 130m³/h

Motor Power

1.94+1.0kw 1.94+1.0kw 1.5KW×2

1.72KW×2

Screen Specs. (700×1250mm)×3 (585×1165mm)×4 (700×1250mm)×3

(585×1165mm)×4

Screen Area

2.6m² 2.7m² 2.6m² 2.7m²
Vibration Strength ≤7.1G ≤7.1G ≤7.1G

≤7.1G

Double Amplitude

7mm 7mm 6mm 6mm
Deck Adjustment -1°~+5° -1°~+5° -1°~+5°

-1°~+5°

Ex Standard

ExdIIBt4 / IECEX / A-TEX

Weight

1630kg 1618kg 1620kg 1600kg

Dimension

2770×1785×1690mm 2966×1600×1280mm 2770×1785×1690mm

2966×1600×1280mm

Remark

Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.

Drying shale shaker with short delivery, shale shaker for drilling waste management

TR shale shaker delivery, TRZS585 shale shaker, good quality shale shaker

TR Solids Control could supply high quality shale shaker with competitive price. Customer’s satisfaction is the highest pursuit of TR Solids Control. Besides, our other produce such as mud cleaner, decanter centrifuge, mud agitator, jet mud mixer, vaccum degasser, vertical cutting dryer, shaker screens, centrifugal pump, shear pump are popular among clients. Welcome you to contact with us for more details!

Contact Us: Maggie Xian|Sales Manager
Sales office:No.10 West of North 2nd Ring Road Xi’an City.
Manufacture: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel:+86-29-86332919
Call:+86-13186019625
E-mail: maggie@trsolidscontrol.com

Web:www.trsolidscontrol.com

www.trsolidcontrol.com

www.chinasolidscontrol.com

www.tr-shale-shaker.com

Drying Shaker Sent to Oil Drilling Field

TR Solids Control is a large-scale enterprise which mainly manufactures oil drilling fluid mud solid control equipment, waste disposal equipment, shield mud treatment system, HDD mud recovery system, construction piling and demolition system etc. After years of development and growth, TR has now become an international and domestic well-known Chinese manufacturer of solid control equipment.

Mud shale shaker, TR drying shaker, linear motion shale shaker, balanced elliptical shaker

Drying shaker for oil gas drilling, drilling fluid shale shaker, good performance shale shaker

On August.23th of 2017, 5 sets of large-scale drying shakers which used for supporting oil rig 50 derrick manufactured by TR Solids Control was completed, and sent to Russia for helping client’s natural gas exploration. Although the current market environment is not good, but with strong R & D team and a good market customer feedback, we constantly update our equipment, and have fully achieved the trust of domestic and foreign market customers. The international market share gradually increased.

TR drying shaker, linear shale shaker, drilling fluid shale shaker, shale shaker for HDD

Shale shaker manufacturer, drilling drying shaker, mud shale shaker, shaker manufacturer

Recently TR Solids Control invests a lot of effort to study and develop new equipment and system. They include TDU sludge pyrolysis system, hydraulic decanter centrifuge, cuttings vacuum pump, composite shaker screen, large capacity shield centrifuge etc. TR full range of equipment can be used in multi-industry fields, such as oil industry, environmental sludge treatment, soil repair, piling, shield, trenching and so on. For more products please visit our website: www.trsolidcontrol.com!
