Mud Desilter Shipped to Middle East

At this week, TRCN100-4N mud desilter was complete the final assembly and production. It is ready to be shipped to the port for delivery to our Middle East Client. This desilter is used to drill geothermal wells. It will filter slurry and sand of drilling mud. The filtered mud will be injected into the wellhead directly after adding the chemicals through mud hopper to achieve the result of recycling.

Solid control mud desilter, drilling fluid mud desilter

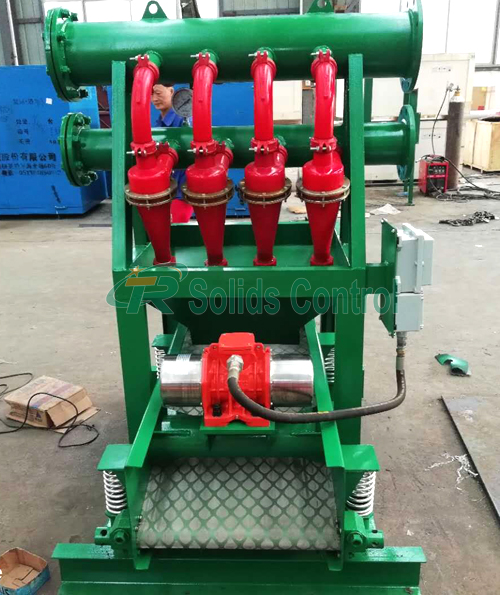

TRCN100-4N mud desilter was complete for Middle East client.

The main element of mud desilter is cyclones. We use 4pcs 4” polyurethane cyclones for this desilter according to our client capacity requirement 60 m3/h. Motor power is 0.4kw with explosion-proof standard. Working pressure is 0.25~0.4mpa. Diameter of slurry inlet is DN100mm, and the slurry outlet is DN125mm. Separation point is 15μm~44μm. It is matched with bottom shaker TRZS60. Currently mud desilter is widely used in industries like oil & gas drilling, horizontal directional drilling, tunnel construction, microtunnelling, geothermal well, coal bed gas and so on.

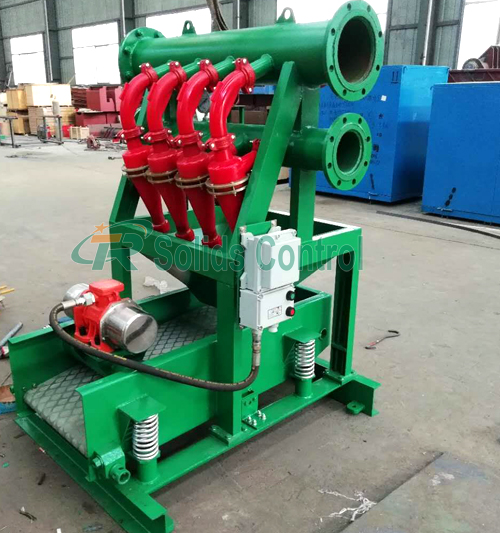

Mud desilter for oilfield drilling, good performance mud desilter

Our mud desilter will be used to drill geothermal wells.

Xi’an Tianrui Petroleum Machinery Equipment Co., Ltd. is a solids control equipment manufacture with rich experience for over 10 years in China. According to different environments and requirements, we can develop our own and suitable solutions for customers. We are factory direct sales company with advantages of product service and competitive price . All employees of TR are looking forward to your consulting and visiting!
