Tag Archives: Submersible slurry pump

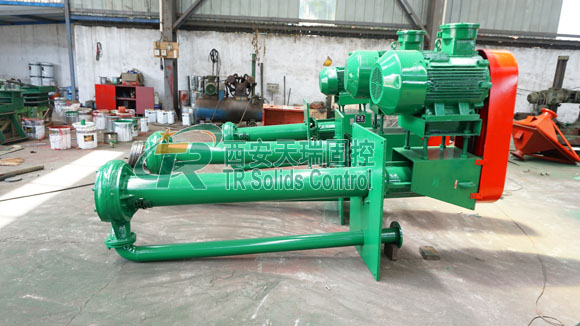

Characterstics of YZ Series Submersible Slurry Pump

Submersible slurry pump normally is used for feeding shale shaker and decanter centrifuge for CBM, HDD or other drilling industry. The pump rotates clockwise from the direction of the motor. It is vertical single stage and single suction system and made of abrasion-resistant alloy. Standard length of pump is 1.3m, but TR submersible slurry pump can be customized. Usually, we use the electrical motor to drive the pump. Popular flow rate of the pump is from 25m³/h to 200m³/h.

Submersible slurry pump, drilling fluid submersible pump

Submersible slurry pump is used for feeding shale shaker and decanter centrifuge.

Characterstics of Our YZ Series Submersible slurry Pump:

  • No bearing between impeller and pump for less repair cost.
  • Compact design covers small space.
  • Impeller is semi-open type.
  • Enough rigidity in submerged parts of the shaft.
  • Could convey the medium containing solid particles with larger density.
  • Submerge length can be customizable.
  • Vertical motor is installed on motor base, connecting the pump by coupling.
Good performance submersible pump, large capacity submersible pump

TR Solids Control is a professional manufacturer of submersible slurry pump.

TR Solids Control is a main and professional manufacturer of submersible slurry pump in China. Our submersible slurry pump has exported to many countries like Vietnam, Egypt, Germany, UAE, US etc. What’s more, we supply other solid control equipment like shale shaker, mud cleaner, decanter centrifuge, mud agitator, centrifugal pump, jet mud mixer, desilter, vertical cutting dryer and so on. Any revelant request, welcome to contact @TR team!

Contact Us: Maggie Xian|Sales Manager
Sales office: No.10 West of North 2nd Ring Road Xi’an City.
Factory Add.: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel:+86-29-86332919
Mob.:+86-13186019625
E-mail: maggie@trsolidscontrol.com

Web: www.trsolidscontrol.com

www.drillingmud-system.com

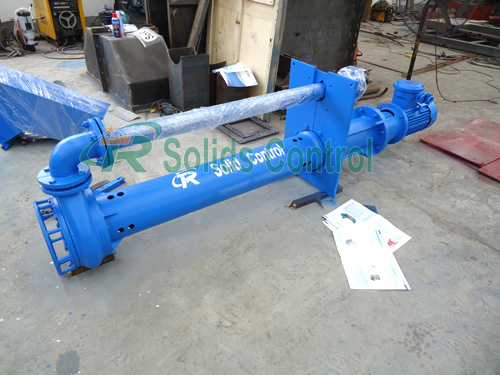

Submersible Slurry Pump Delivered to Malaysia

Recently, two sets TRYZ series submersible slurry pump are completed in our factory. Now they have been delivered to our Malaysian customer. They will be used as feeding pump for their present decanter centrifuge. The main features of our YZ submersible slurry pump are have enough rigidity in submerged parts of the shaft, and don’t set bearing and shaft seals between the impeller and pump, and could convey the medium containing solid particles with larger density.

Oilfield submersible slurry pump, drilling submersible slurry pump

Good price submersible pump, China submersible pump supplier

Main features of our TR Submersible Slurry Pump is as below:

  1. Compact design covers small space.
  2. Impeller is semi-open type.
  3. Enough rigidity in submerged parts of the shaft.
  4. Could convey the medium containing solid particles with larger density.
  5. Submerge length can be customizable.
  6. No bearing between impeller and pump for less repair cost.
  7. Vertical motor is installed on motor base, connecting the pump by coupling.
Submersible slurry pump for sale, good quality submersible slurry pump

Solid control submersible pump, high standard submersible slurry pump

TR Solids Control is main supplier of submersible slurry pump in China. We have good price and high quality. In addition, we have other hot product like shale shaker, mud cleaner, mud agitator, mud gun, decanter centrifuge, centrifugal pump, shear pump, jet mud mixer, mud gas separator etc. If you need more information, welcome to contact with us!

Contact Us: Maggie Xian|Sales Manager
Sales office: No.10 West of North 2nd Ring Road Xi’an City.
Factory Add.: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel:+86-29-86332919
Mob.:+86-13186019625
E-mail: maggie@trsolidscontrol.com

Web:www.trsolidscontrol.com

www.trsolidcontrol.com

www.drillingmud-system.com

www.chinasolidscontrol.com

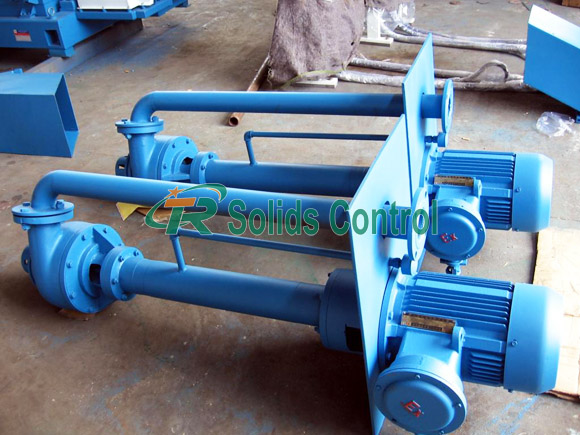

Submersible Slurry Pump Delivered to Russia

Submersible slurry pump is one kind of vertical type centrifugal pump. It mainly supplies slurry for shale shaker and decanter centrifuge from drilling mud pit. On March 19th, TR finished new batch of submersible slurry pump in our factory. It will be delivered to our Russia client for their oil & gas drilling field. The model is 80YZ50-20, flow rate is 60m3/h. Also power is 11kw. These pumps will be used as feeding pumps for their present decanter centrifuge.

China submersible slurry pump supplier, good price submersible pump

Submersible pump for sale, drilling slurry pump, feeding pump for solid control

Technical Data of YZ Series Submersible Slurry Pump

Model Flow Lift Speed Motor
50YZ25-12 25m3/h 12m 1430r/min 3kw
50YZ20-18 20m3/h 18m 1430r/min 4kw
80YZ50-20B 40m3/h 16m 1440r/min 5.5kw
80YZ50-20 60m3/h 17.5m 1440r/min 7.5kw
80YZ80-20 90m3/h 22m 1460r/min 11kw
100YZ100-30A 75m3/h 30m 1470r/min 18.5kw
100YZ100-30 60m3/h 36m 1470r/min 22kw
100YZ160-38B 82m3/h 33m 1480r/min 30kw
100YZ120-60 120m3/h 40m 1480r/min 45kw
150YZ250-40A 135m3/h 35m 1480r/min 55kw
150YZ250-40B 120m3/h 28m 1480r/min 37kw
Drilling fluid submersible slurry pump, oilfield slurry pump manufacturer

High standard slurry pump for sale, API submersible pump supplier

Are you finding a short-delivery submersible slurry pump for your solid control equipment? TR Solids Control will be your good choice. Our submersible slurry pump is currently used in oil & gas drilling, horizontal directional drilling, drilling waste management, oil sludge treatment, tunnel construction, environment protection etc. Looking forward to your request!

Contact Us: Maggie Xian|Sales Manager
Sales office: No.10 West of North 2nd Ring Road Xi’an City.
Manufacture: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel:+86-29-86332919
Call:+86-13186019625
E-mail: maggie@trsolidscontrol.com

Web:www.trsolidscontrol.com

www.trsolidcontrol.com

www.drillingmud-system.com

www.chinasolidscontrol.com

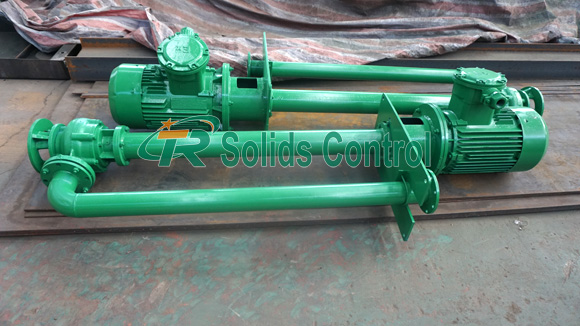

Key Features of TRYZ Series Submersible Slurry Pump

Submersible slurry pump is also called vertical sand pump. Our YZ series submersible slurry pump mainly supplies mud for shale shaker and decanter centrifuge from the mud pit. Its structure is single sucking cantilever type. Raw material of our pump is rather anti-abrasive. It can transfer different hard materials. Including sand, cement, particles, shale etc. TR Solids Control has rich experience in manufacturing high quality submersible slurry pump. Our pump may penetrate the liquid between 800m-2500mm under it, and may be equipped with suction pipes if necessary. Shaft seal is not adapted, the medium with dense solids can also be transported.

Submersible slurry pump for drilling waste management, high capacity submersible slurry pump

Drilling fluids submersible slurry pump, TRYZ series submersible slurry pump for sale

TRYZ series submersible slurry pump has below key features:

  1. Impeller is semi-open type.
  2. No bearing between impeller and pump for less repair cost.
  3. Submerge length can be customizable.
  4. Compact design covers small space.
  5. Enough rigidity in submerged parts of the shaft.
  6. Convey the medium containing solid particles with larger density.
  7. Vertical motor is installed on motor base, connecting the pump by coupling.
Oilfield drilling submersible slurry pump, China submersible slurry pump supplier

API spec submersible slurry pump, oil sludge submersible slurry pump

Currently TRYZ series submersible slurry pump is widely used in oil & gas drilling, trenchless HDD, city bored piling, tunnel construction, coal bed gas solids control system, water drilling, environment protection, drilling waste management, oil mud seperation, oil sludge dewatering systems, coal washing, municipal projects, mining, paper making, cement plant etc. Welcome to contact with TR Solids Control for more details!

Contact Us: Maggie Xian|Sales Manager
Sales office:No.10 West of North 2nd Ring Road Xi’an City.
Manufacture: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel:+86-29-86332919
Call:+86-13186019625
E-mail: maggie@trsolidscontrol.com

Web:www.trsolidscontrol.com

www.trsolidcontrol.com

www.chinasolidscontrol.com

www.tr-shale-shaker.com

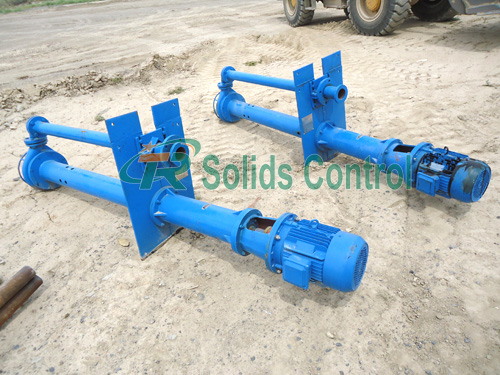

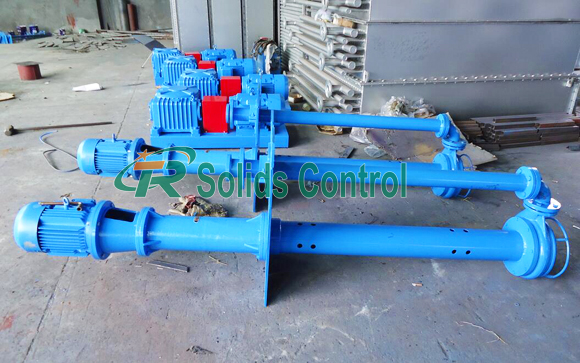

Presentation of YZ Series Submersible Slurry Pump

Our YZ series submersible slurry pump mainly supply mud for shale shaker and decanter centrifuge from the mud pit. Its structure is single sucking cantilever type, it uses bearing seat, supporting seat and pipe to connect the hydraulic parts of pump, and liquid is discharged from the hydraulic hose assembly. Pump’s impeller is semi-open type, and it’s equipped with mixing bladed in the stretch part of impeller inlet. The main features of submersible slurry pump are have enough rigidity in submerged parts of the shaft, and don’t set bearing and shaft seals between the impeller and pump, and could convey the medium containing solid particles with larger density. The standard length of pump inserting liquid is 1.3 meter, and can be equipped with a suction tube if required. We operate shaft seals by inserting the pump into liquid. The transmission works by vertical motor mounted on the bearing base, connected by coupling and the pump.

Top quality submersible slurry pump, YZ Series submersible slurry pump

Submersible slurry pump for HDD, Drilling submersible slurry pump, China submersible slurry pump

Technical parameters of YZ series submersible slurry pump:

Model Flow Lift Speed Motor
50YZ25-12 25m3/h 12m 1430r/min 3kw
50YZ20-18 20m3/h 18m 1430r/min 4kw
80YZ50-20B 40m3/h 16m 1440r/min 5.5kw
80YZ50-20 60m3/h 17.5m 1440r/min 7.5kw
80YZ80-20 90m3/h 22m 1460r/min 11kw
100YZ100-30A 75m3/h 30m 1470r/min 18.5kw
100YZ100-30 60m3/h 36m 1470r/min 22kw
100YZ160-38B 82m3/h 33m 1480r/min 30kw
100YZ120-60 120m3/h 40m 1480r/min 45kw
150YZ250-40A 135m3/h 35m 1480r/min 55kw
150YZ250-40B 120m3/h 28m 1480r/min 37kw
Top quality submersible slurry pump, YZ Series submersible slurry pump

Submersible slurry pump for oilfield, good performance submersible slurry pump, submersible slurry pump manufacturer

TR Solids Control is a R & D, manufacturing, sales, technical services company in advanced solid control equipment. Besides submersible slurry pump, we also supply top-quality decanter centrifuge, vacuum degasser, shear pump, centrifugal pump, mud cleaner, shale shaker, jet mud mixer, vertical cutting dryer and oil & natural gas slurry purification system, HDD trenchless mud recycling system, piling and shield mud system, river dredging purification system etc.

Drilling submersible slurry pump, excellent YZ series submersible slurry pump

Contact Us: Maggie Xian|Sales Manager
Sales office:No.10 West of North 2nd Ring Road Xi’an City.
Manufacture: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel:+86-29-86332919
Call:+86-15229092385
E-mail: maggie@trsolidscontrol.com

Web: www.chinasolidscontrol.com

            www.trsolidcontrol.com

            www.trsolidscontrol.com

            www.tr-shale-shaker.com
