Mud Desilter Exported to Singapore

Mud desilter is the third class equipment in the whole solids control system. It is used to separate the solid particles whose diameter is 15-44μm from drilling fluid. TRCN series desilter can be adjusted to control the handling capacity to match the different requirements. On May. 31th, one new set TRCN100-4N mud desilter was transported to the port for delivery. It will be shipped to our new Singapore customer in oilfield industry.

Mud desilter for oil and gas, solid control mud desilter

New mud desilter will be shipped to our new Singapore customer.

Processing capacity of this desilter is 60m3/h with 4pcs 4” cyclones installed. Its inlet size is DN100mm and outlet size is DN125mm. Working pressure is 0.25 to 0.4Mpa. Bottom shaker adopts our mini model TRZS60 with one motor. This is our smallest model desilter for small scale mud treatment system. Our mud desilters have advantages of large handling capacity, high separation ability and convenient operation. They are widely used in petroleum drilling and HDD (Horizontal directional drilling), city bored piling etc.

TRCN100-4N mud desilter, drilling fluid mud desilter

TRCN100-4N mud desilter was transported to the port for delivery.

TRCN series mud desilter conforms to both API & ISO international standard. Till now, we have exported to many countries like Vietnam, Egypt, Germany, UAE, US, Middle East, Singapore, Malaysia, Australia, Canada, UK, South Africa etc. In addition, we manufacture other solid control equipment like shale shaker, mud cleaner, decanter centrifuge, jet mud mixer, desander, vertical cutting dryer, centrifugal pump, mud gas separator, flare ignition device and so on. We welcome your inquiry!



Contact Us: Maggie Xian|Sales Manager
Sales office: No.10 West of North 2nd Ring Road Xi’an City.
Factory Add.: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel:+86-29-86332919
Mob.:+86-13186019625
E-mail: maggie@trsolidscontrol.com

Web: www.trsolidscontrol.com

www.drillingmud-system.com

Mud Desilter Shipped to Middle East

At this week, TRCN100-4N mud desilter was complete the final assembly and production. It is ready to be shipped to the port for delivery to our Middle East Client. This desilter is used to drill geothermal wells. It will filter slurry and sand of drilling mud. The filtered mud will be injected into the wellhead directly after adding the chemicals through mud hopper to achieve the result of recycling.

Solid control mud desilter, drilling fluid mud desilter

TRCN100-4N mud desilter was complete for Middle East client.

The main element of mud desilter is cyclones. We use 4pcs 4” polyurethane cyclones for this desilter according to our client capacity requirement 60 m3/h. Motor power is 0.4kw with explosion-proof standard. Working pressure is 0.25~0.4mpa. Diameter of slurry inlet is DN100mm, and the slurry outlet is DN125mm. Separation point is 15μm~44μm. It is matched with bottom shaker TRZS60. Currently mud desilter is widely used in industries like oil & gas drilling, horizontal directional drilling, tunnel construction, microtunnelling, geothermal well, coal bed gas and so on.

Mud desilter for oilfield drilling, good performance mud desilter

Our mud desilter will be used to drill geothermal wells.

Xi’an Tianrui Petroleum Machinery Equipment Co., Ltd. is a solids control equipment manufacture with rich experience for over 10 years in China. According to different environments and requirements, we can develop our own and suitable solutions for customers. We are factory direct sales company with advantages of product service and competitive price . All employees of TR are looking forward to your consulting and visiting!

Contact Us: Maggie Xian|Sales Manager
Sales office: No.10 West of North 2nd Ring Road Xi’an City.
Factory Add.: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel:+86-29-86332919
Mob.:+86-13186019625
E-mail: maggie@trsolidscontrol.com

Web: www.trsolidscontrol.com

www.drillingmud-system.com

Piling Desilter is Widely Used In No-Dig Industry

TR piling desilter is a integrated mud system for treating small solid particles. Our piling desilter is composed of double-layer shale shaker, cyclones, centrifugal pump also mini mud tank. It covers small area, and could transport easier because of integrated system. This is a good choice to lower construction cost and reduce mud usage. Nowadays TR piling desilter is widely used in No-dig industry like horizontal directional drilling, tunnel, microtunneling also pipe jacking.

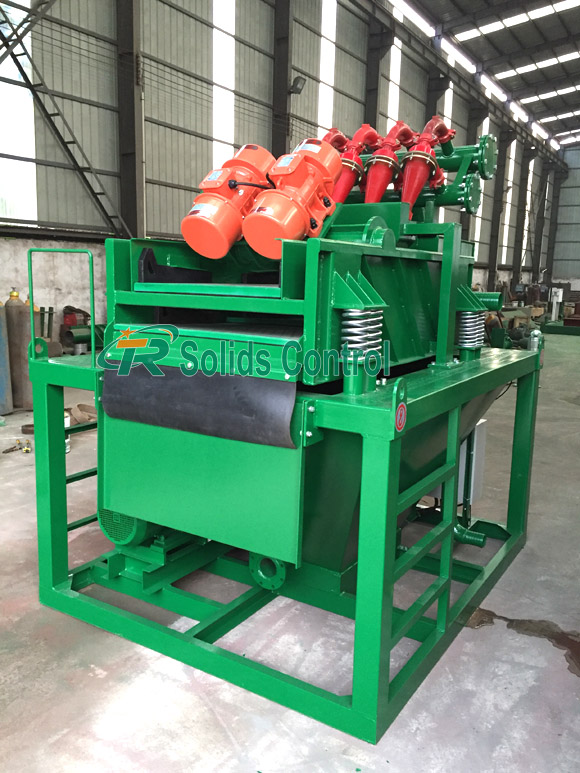

Piling desilter plant, good quality mud desilter, China desilter supplier

Mud desilter for sale, drilling fluid desilter supplier

Technical Data of TR Piling Mud Plant:

Model TRZX-50/25 TRZX-100/50 TRZX-200/50
Fluid Capacity ≤50m³/h ≤100m³/h ≤200m³/h
Sludge Treatment Capacity ≤26T/h ≤50m³/h ≤50m³/h
Separation Point 25μm 50μm 50μm
Shale Shaker TRZS753 TRZS753 TRZS705
Screen Area Upper:700×1250

Bottom:750×900×2

Upper:700×1250

Bottom:750×900×2

Upper:750×900×2

Bottom:700×1250×3

Vibration Motor 1.0kw×2 1.0kw×2 1.5KW×2
Matching Pump TRSB4×3-12(15KW) TRSB5×4-13(30KW) TRSB6×5-13J(45KW)
Matching Hydrocyclone DN100×4 DN250×1 DN250×2
Tank Dimension 2.1×1.5×2.6m 3.05×2.0x1.2m 3.6×2.1×1.2m
Dimension 3.12×2.2×2.38m 3.7×2.2×2.54m
Piling desilter for no-dig industry, drilling desilter for sale

Solid control desilter, factory price piling desilter, mud desilter supplier

Are you find a suitable manufacture for mud cleaning of your drilling field? Therefore TR Solids Control can help you. Above all, we could match the right mud system according to your site condition. At present, our mud system is almost used in oil & gas drilling, horizontal directional drilling, tunnel boring system, city bored piling, also drilling waste management, etc. Looking forward to your inquiry!
