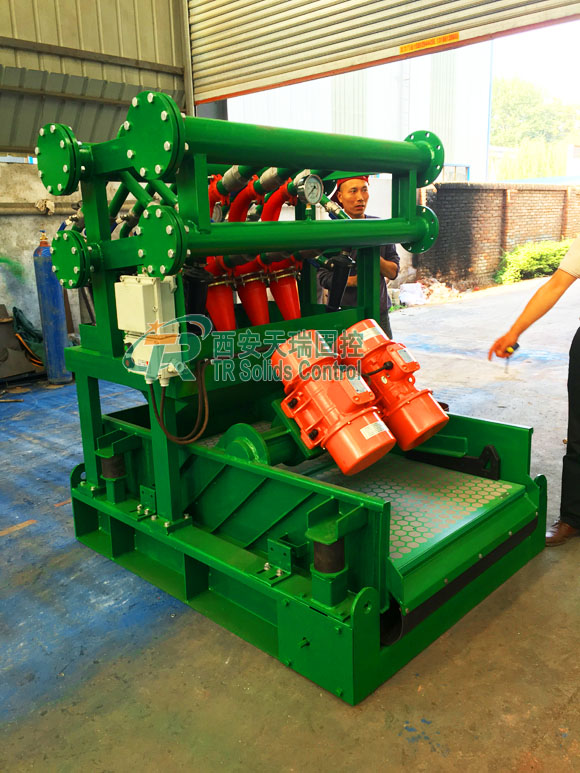

Piling Desilter is Widely Used In No-Dig Industry
TR piling desilter is a integrated mud system for treating small solid particles. Our piling desilter is composed of double-layer shale shaker, cyclones, centrifugal pump also mini mud tank. It covers small area, and could transport easier because of integrated system. This is a good choice to lower construction cost and reduce mud usage. Nowadays TR piling desilter is widely used in No-dig industry like horizontal directional drilling, tunnel, microtunneling also pipe jacking.
Technical Data of TR Piling Mud Plant:
Model | TRZX-50/25 | TRZX-100/50 | TRZX-200/50 |
Fluid Capacity | ≤50m³/h | ≤100m³/h | ≤200m³/h |
Sludge Treatment Capacity | ≤26T/h | ≤50m³/h | ≤50m³/h |
Separation Point | 25μm | 50μm | 50μm |
Shale Shaker | TRZS753 | TRZS753 | TRZS705 |
Screen Area | Upper:700×1250
Bottom:750×900×2 |
Upper:700×1250
Bottom:750×900×2 |
Upper:750×900×2
Bottom:700×1250×3 |
Vibration Motor | 1.0kw×2 | 1.0kw×2 | 1.5KW×2 |
Matching Pump | TRSB4×3-12(15KW) | TRSB5×4-13(30KW) | TRSB6×5-13J(45KW) |
Matching Hydrocyclone | DN100×4 | DN250×1 | DN250×2 |
Tank Dimension | 2.1×1.5×2.6m | 3.05×2.0x1.2m | 3.6×2.1×1.2m |
Dimension | 3.12×2.2×2.38m | 3.7×2.2×2.54m |
Are you find a suitable manufacture for mud cleaning of your drilling field? Therefore TR Solids Control can help you. Above all, we could match the right mud system according to your site condition. At present, our mud system is almost used in oil & gas drilling, horizontal directional drilling, tunnel boring system, city bored piling, also drilling waste management, etc. Looking forward to your inquiry!
Contact Us: Maggie Xian|Sales Manager
Sales office: No.10 West of North 2nd Ring Road Xi’an City.
Manufacture: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel:+86-29-86332919
Call:+86-13186019625
E-mail: maggie@trsolidscontrol.com

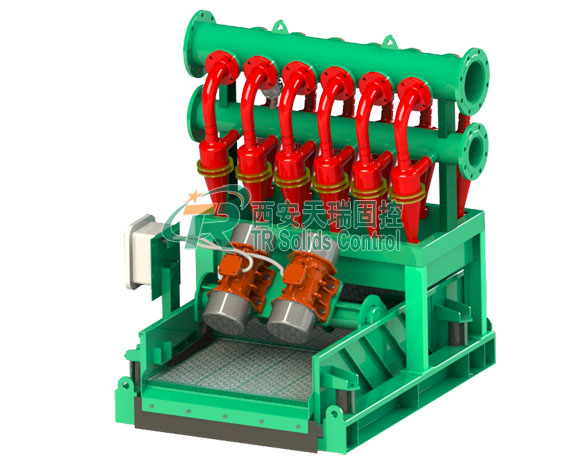

Desilter Is The Third Solid Control Equipment To Treat Drilling Fluids
Desilter is the third solid control equipment to treat drilling fluids. It is composed of several sets of hydrocyclones based on customer’s capacity requirements. As for hydrocyclones, it is divided into desander hydrocyclone and desilter hydrocyclone according to different hydrocyclone diameter. Generally below 6” hydrocyclone combination is called desilter. In oil & gas drilling, 4” or 5” hydrocyclone combination are common for desilter, and 4” is the most used. Our TRCN series desilter is mainly used for separating 15-44μm solid particles in drilling fluids. At present, TRCN series desilter manufactured by TR Solids Control is widely used in oil & gas drilling, horizontal directional drilling, coal bed methane drilling, bored piling, tunnel and other trenchless project.
Technical data of TRCN series desilter:
Model |
TRCN100-4N | TRCN100-6N/8N | TRCN100-12N/16N | TRCN100-20N |
Capacity |
60m3 | 90m3/120m3 | 180m3/240m3 |
300m3 |
Cyclone Specs |
4” |
|||
Cyclone Qty |
4 pcs | 6pcs/8pcs | 12pcs/16pcs |
20pcs |
Working Pressure |
0.25-0.4Mpa |
|||
Inlet Size |
DN100mm |
DN125mm |
DN150mm |
DN150mm |
Outlet Size |
DN125mm | DN150mm | DN200mm |
DN200mm |
Separation Point |
15μm -44μm |
|||
Bottom Shaker |
TRZS60 | TRZS60 | TRZS752 |
TRZS703 |
Dimension |
1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm |
2770*1785*1810mm |
Weight |
550kg | 560kg/580kg | 1150kg |
1950kg |
Remark |
All desilter could be customized without bottom shaker. |
TR Solids Control is well-known desilter designer and manufacturer in China. We will provide our clients high quality product with reasonable price. At the same time we offer good performance desander, mud cleaner, shale shaker, decanter centrifuge, jet mud mixer, vacuum degasser, mud agitator, shear pump, screw pump, centrifugal pump, and mud recycling system for oil & gas drilling, tunnel construction, bored pile project, HDD trenchless etc. You are welcome to consult and visit us at any time!
