Trenchless Construction Methods

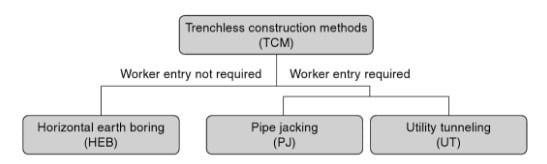

Trenchless technology is a type of subsurface construction work that requires few trenches or no continuous trenches. It is a rapidly growing sector in construction and civil engineering industry. Trenchless construction methods can be implemented for new construction as well as for renewal purpose. Each purpose requires specific trenchless construction techniques. The classification flow chart of trenchless construction methods are shown in below figure.
Trenchless Construction Methods, mud recovery system for trenchless, HDD trenchless
From the above figure, trenchless construction methods are classified as:
- Horizontal earth boring
- Pipe jacking
- Utility Tunneling
The classification is based on the requirement of workers. From the above chart, the horizontal earth boring (HEB) do not require workers to proceed the work inside the borehole drilled. While the pipe jacking methods (PJ) and the Utility tunnelling (UT) method involves workers inside the borehole.
HDD trenchless process, trenchless mud cleaning system, trenchless mud mixing
The pipe jacking differs from utility tunneling in terms of the support structure they employ. Pipe jacking uses prefabricated structures as support and the UT method employs the equipment used for excavation itself as the support structure which is temporary.
HDD mud recycling system, solids liquids separation system, trenchless mud system
TR Solids Control is the industry leader in trenchless technology. We are always striving for excellence and lead by example. TR mud recovery system is popular in trenchless construction. Please send your detailed requirement, TR will provide suitable system or mud cleaning equipment to you. Welcome your inquiry at any time!
Contact Us: Maggie Xian|Sales Manager
Sales office：No.10 West of North 2nd Ring Road Xi’an City.
Manufacture: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel：+86-29-86332919
Call：+86-13186019625
E-mail: maggie@trsolidscontrol.com
Application of HDD Mud Recycling System
HDD mud recycling system is designed according to the requirements of trenchless technology. It’s applied to handle the returned mud from underground in Horizontal Directional Drilling. It can separate big particles by shale shaker and mud cleaner, then stirs the mud evenly by mud agitator. Finally we can recycle the mud by using centrifugal pump connected to horizontal directional drilling system.
HDD mud recycling system, HDD trenchless, drilling fluid treatment, mud cleaning system, mud solid control
Our 1000GPM HDD mud recycling system includes 2 sets shale shaker, 1 set mud cleaner, 3 sets centrifugal pump, 1 pc hopper, 1 set mud agitator, 1 set mud tank, 1 set guardrail walkway, 2 pcs explosion-proof lamp and 1 set electrical control. TR HDD mud recycling system can improve efficiency of the mud, reduce HDD slurry cost, and enhance drilling speed.
| Model | Capacity
(m3/h) |
Screen Area(m2) | Purification Class | Gross Power
(KW) |
Total Volume
(m3) |
| TRMR-200 | 50 | 2.3 | 2 | 35 | 5 |
| TRMR-500 | 120 | 4 | 3 | 125 | 15 |
| TRMR-1000 | 240 | 6 | 3 | 185 | 30 |
Waste water management, mud recycling unit, drilling waste cleaning, HDD mud system, HDD trenchless
We are professional in solids and liquids separation. TR Solid Control supplies top quality HDD mud recycling system according to your requirement. Welcome to check our facility.
