Product Description

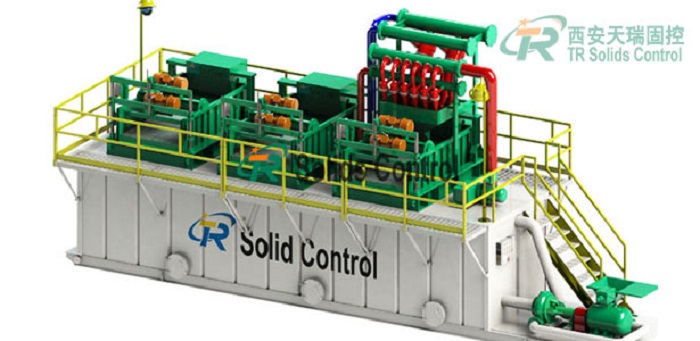

The TRHDD-200 HDD Mud Recycling System, with a high-efficiency processing capacity of 200GPM as the core and stable performance,It has become the preferred equipment for medium and small-sized HDD projects,Solved three major problems:narrow construction sites, cost sensitivity, and strict environmental compliance etc.

Advantages

1. The TRHDD-200 is equipped with a TRZS752S vibrating screen. This double-layer linear vibrating screen adopts a scientific screen surface design, with a total upper screen area of 0.875㎡, specially used to intercept coarse drill cuttings, gravel and other large impurities, The lower screen area is expanded to 1.35㎡ to further retain fine-grained solids. The double-layer screening design improves the screening efficiency.Even in the face of high-sand-content mud, it can maintain stable operation, laying a foundation for the subsequent purification link.
2. The 4 cyclones equipped with the TRHDD-200 work together to quickly separate fine sand particles in the mud by centrifugal force,greatly reducing the sand content of the mud,and improving the fluidity and stability of the mud.
3. The TRSB4X3-11J mud mixing pump and TRSLH100 mud mixing hopper equipped with the TRHDD-200 form an efficient mud mixing combination.The total motor power of the entire HDD mud recycling system reaches 44KW, which can not only meet the cooperative operation needs of various components, but also effectively control energy consumption.balancing efficiency and energy saving.
4. The TRHDD-200 improves the adaptability and mobility of the equipment with a compact shape and reasonable weight.The overall dimensions of the HDD mud recycling system are 4000×2360×2940mm,even in narrow sites,it can be flexibly deployed without occupying a large amount of construction space, reducing the impact on the surrounding environment and traffic.
5. At the same time, the total weight of the TRHDD-200 is controlled at 5500KG,the standard truck can complete the transportation,greatly shortening the transfer time, reducing construction delays.The 5m³ slurry storage tank of the HDD mud recycling system can meet the slurry supply demand for continuous construction, and ensuring the continuous and stable progress of drilling work.

The TRHDD-200 HDD Mud Recycling System as a type of Solids Control System, with a processing capacity of 200GPM as the core, supported by customized components such as TRZS752S vibrating screen, 4 cyclones, and TRSB4X3 series pump sets.Whether from the rationality of technical parameters or the practicality of engineering applications, the TRHDD-200 is an ideal choice for medium and small-sized trenchless projects.
