Tag Archives: High quality vacuum degasser
Structural Features Of TR Vacuum Degasser
Vacuum degasser is a solids control device for treatment of gas cut drilling liquid. It can get rid of invasive gas quickly in drilling liquid to recover specific gravity of drilling liquid and stabilize its performance. It’s an indispensable equipment for exploration wells, ultra-deep wells and underbalanced well drilling projects, suitable for supporting various drilling fluid circulation purification systems.

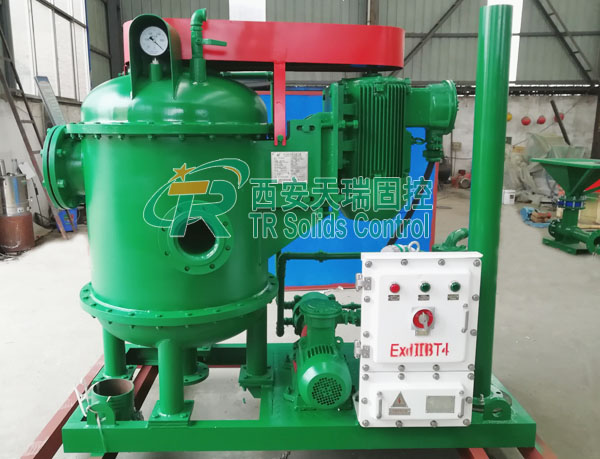

Vacuum degasser for sale, good quality vacuum degasser
Structural features of TRCD series vacuum degasser:
- Belt drive makes it avoid the complexity of the reducing gear, and guarantee long working time without trouble.
- There is a gas-water separator in vacuum degasser, which avoids water and gas are discharged at the same time, and also supply water to the vacuum pump, saving water and environment-friendly.
- Vacuum degasser makes mud throw towards barrel wall at a high speed by rotor. Bubbles in the mud are broken thoroughly, making degasser have high degassing efficiency up to 95%.
- Water ring type of vacuum pump work is always at a constant temperature state, suitable for flammable and explosive gas suction.
- Scientific and reasonable design for structure. It can achieve effective separation of gas and liquid, filter out impurities, and ensure exhaust pipe always clear.

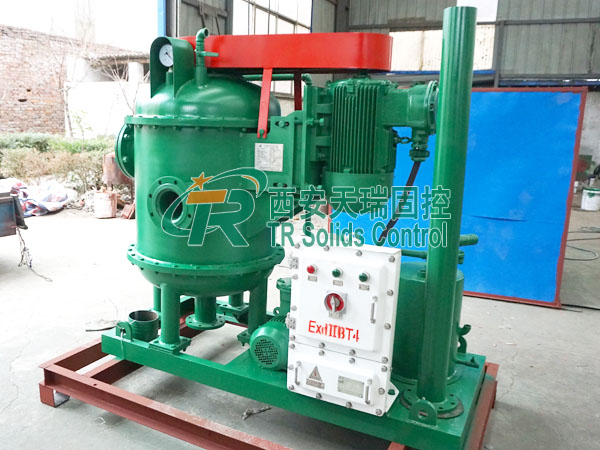

Oilfield drilling vacuum degasser, high efficiency degasser for sale
TR Solids Control is a professional manufacturer of solid control system/equipment in china. We will provide our clients high quality products with most reasonable price. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. We are willing to cooperate and make common progress with friends at home and abroad with first-class products, service and reasonable prices.
Contact Us: Maggie Xian|Sales Manager
Sales office: No.10 West of North 2nd Ring Road Xi’an City.
Factory Add.: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel：+86-29-86332919
Mob.：+86-13186019625
E-mail: maggie@trsolidscontrol.com
Web：www.trsolidscontrol.com
www.drillingmud-system.com
www.chinasolidscontrol.com
TRZCQ270 Vacuum Degasser Shipped to Russia
After half a month’s tense manufacturing, TRZCQ270 series vacuum degasser was finished finally after Chinese Spring Festival. It’s transported to Qingdao Port, then shipped to our Russian client.
TRZCQ270 series vacuum degasser, drilling fluids vacuum degasser, China vacuum degasser manufacturer
Vacuum degasser is mainly used to remove small bubbles with a diameter of less than 0.8 mm in gas invasion drilling fluid during oilfield drilling process. It is a safe and environment-friendly drilling fluid equipment, which is also called negative pressure degasser according to its working principle. Vacuum degasser plays an important role in restoring slurry’s specific gravity and stabilizing mud’s performance. This TRZCQ270 vacuum degasser ordered by the customer is used for supporting oil drilling site. During the production process, we informed the progress of production to client timely, so that they can rest assured our equipment could arrive safely. Fortunately our client is very satisfied with this cooperation, and they express willingness to establish long-term cooperation with us.
Vacuum degasser delivery, solids control vacuum degasser, high efficient vacuum degasser
As for the TRZCQ270 vacuum degasser ordered by client, its body diameter is 800mm, processing capacity is 270m3/h, vacuum degree is -0.03 ~ -0.045MPa, transmission ratio is 1.68, degassing efficiency ≥95%. Its main motor power is 22kw, vacuum pump power is 3kw, impeller speed is 870r/min. Our explosion-proof standard meets ExdllBt4. Net weight is 1350kg, external dimension is 2000mm*1000mm*1670mm. We also can manufacture other models like TRZCQ240, TRZCQ300, TRZCQ360. Appropriate vacuum degasser can be selected in accordance with client’s on-site using requirements.
Vacuum degasser delivery, HDD trenchless vacuum degasser, popular vacuum degasser
If you have any new requirement about solids control equipment or mud recovery system, welcome to contact TR Solids Control freely. We will offer the best product service to you. Our main product covers shale shaker, shaker screens, mud cleaner, desilter, desander, decanter centrifuge, mud agitator, mud gun, centrifugal pump, submersible slurry pump, screw pump, jet mud mixer, mud gas separator, flare ignition device etc.
Contact Us: Maggie Xian|Sales Manager
Sales office：No.10 West of North 2nd Ring Road Xi’an City.
Manufacture: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel：+86-29-86332919
Call：+86-13186019625
E-mail: maggie@trsolidscontrol.com
