HDD Mud Recycling System
HDD mud recycling system is designed for trenchless technology requirement. HDD mud recycling system is used for purify the underground mud in the horizontal directional drilling process. Using the shale shaker and mud cleaner to separate the bigger size solids out. Then using the jet mud mixer to add required chemicals and stir evenly to make sure the mud can reused. Use the mud pump to pump the mixed well mud to drilling system. TR Solids Control’s mud recycling system has good advantage of high treating capacity, convenient delivery and good quality. It is widely used in HDD trenchless filed, construction piling and CSM exploration.
HDD mud solids conyrol|HDD mud recovery system
TRHDD-1000 mud recovery system parameter
| Model | TRHDD-200 | Model | TRHDD-500 | TRHDD-1000 |
| Capacity | 200GPM (50m3 /h) | Capacity | 500GPM (120m3 /h) | 1000GPM (240m3 /h) |
| Desilter | TRZS752S | Shale Shaker | TRZS703/TRZS585 | TRZS703/TRZS585 |
| Total area of upper screen | 0.875m2 | Total screen area | 2.7m2 | 2X2.7m2 |
| Total area of lower screen | 1.35m2 | Model of high-efficiency cleaner | TRQJ250X1S-100X8N | TRQJ250X2S-100X12N |
| Cyclone Specs | 4″ | Desander cyclone | 10″×1pcs | 10″×2pc |
| Cyclone Qty | 4pcs | Desilter cyclone | 4″×8pcs | 4″×12pcs |
| Model of feed pump | TRSB4X3-12J | Total area of underflow screen | 1.35m2 | 2.12m2 |
| Model of mixing pump | TRSB4X3-11J | Feed pump of cleaner | TRSB6X5-11J 2pcs | TRSB8X6-11J 2pcs |
| Model ofmixing hopper | TRSLH100 | Model of mixing pump | TRSB6X5-12J | TRSB8X6-12J |
| Total power | 44kW | Model of mixing hopper | TRSLH150-35（37KW） | TRSLH150-35（45KW） |
| Total volume | 5m3 | Model of agitator | TRJBQ7.5 | TRJBQ7.5 |
| Total volume | 4000×2360×2940mm | Total power | 130kW | 184kW |
| Total weight | 5500kg | Total volume | 15m3 | 30m3 |
| Total volume | 10000×2360×4228mm | 12100×2630×4438mm | ||
| Total weight | 17000kg | 20000kg |
Contact Us:TR Solids Control
Sales office：No.10 West of North 2nd Ring Road Xi’an City.
Manufacture: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel：+86-29-86332919
Call：13186019265
E-mail：sales@trsolidscontrol.com
Web:www.chinasolidscontrol.com
Drilling fluids recycling systems for HDD
Drilling fluids recycling systems can provide horizontal directional drilling (HDD) contractors with a multitude of benefits and savings. These benefits and savings include a reduction in drilling fluids products required for a project, lower shipping costs to get these products to the jobsite, a cleaner jobsite, less water needed for mixing drilling fluids, a reduction in disposal cost of drill spoils, along with less labor and trucking to haul drill spoils away.
Like the drill, a drilling fluids recycling system is only as good as the manner in which it is operated. Without a thorough understanding of how the equipment works or what drilling fluids products to use with a mud recycling system, and/or how to properly test and maintain drilling fluids properties, even the best recycling system in the world is a wasted investment and improper use of this equipment can cost a contractor to lose a bore.

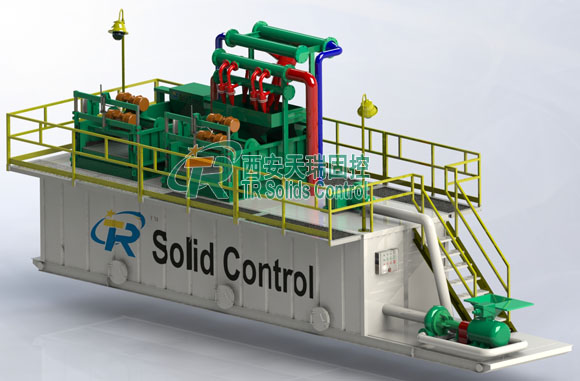

500GPM Mud Recycling System
