Mud Cleaner Hydrocyclones Shipped to Europe

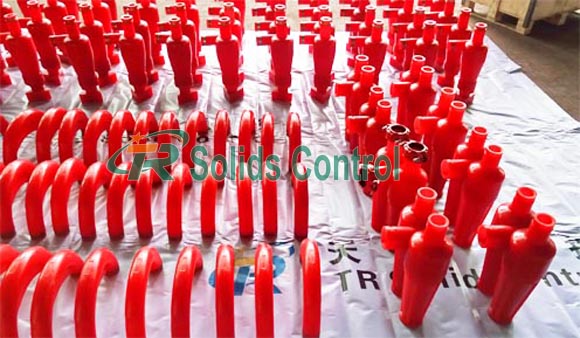

Good news! Recently TR finished a batch spare parts of mud cleaner. They are hydrocyclones installed on desander & desilter. Finally they will use on the mud cleaner our European client purchased last year. As for this order, it includes 20pcs 10” Derrick hydrocyclone, 40pcs 4” Derrick hydrocyclone, 60pcs Swaco 4” dual-hydrocyclone, 14pcs 12” Swaco hydrocyclone, also 40pcs 180°elbows.
Drilling fluid cyclone for sale, mud cleaner cyclone manufacturer

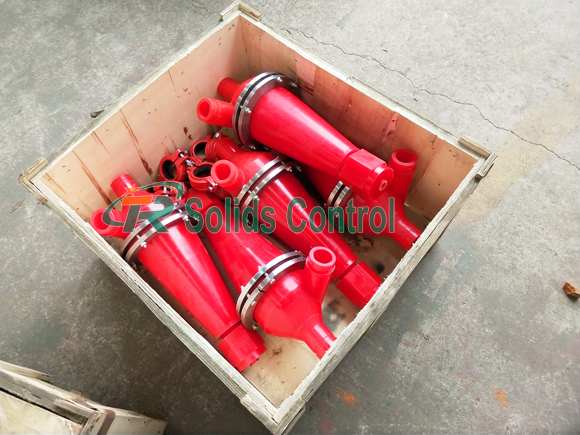

Hydrocyclones are important and necessary spare parts in desander also desilter. They are common separation classifying device. What’s more, the basic principle of them is separate liquid – liquid, liquid – solid, also liquid – gas and other two – phase or multi-phase mixture which have certain density difference under the action of centrifugal force. Furthermore, TR Solids Control are the main manufacturer in hydrocyclones for more than 10 years. Our hydrocyclones can replace with brands Derrick, MI-Swaco, but with better price and good performance.
Good performance cyclone, good price cyclone, high quality cyclone
Above all, in the field of slurry separation, TR Solids Control can design and manufacture top quality solid control equipment and system. In addition, TR shale shaker, decanter centrifuge, mud cleaner, desiter, desander, mud agitator, centrifugal pump, shear pump, submersible slurry pump, jet mud mixer, also vaccum degasser get high praise from clients . TR Solids Control is your trustworthy and permanent partner.
Contact Us: Maggie Xian|Sales Manager
Sales office: No.10 West of North 2nd Ring Road Xi’an City.
Manufacture: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel：+86-29-86332919
Call：+86-13186019625
E-mail: maggie@trsolidscontrol.com
Brief Introduction of Linear Shale Shaker
Linear Shale Shaker is the third generation of vibrating shaker. It uses the horizontal excitation of vibration motor as vibration source, material on the sieve up forward for linear motion, also known as linear shaker. Linear Motion Shaker is the most widely used shale shaker. All shale shakers designed by ourselves, including Balanced Elliptical motion Shaker also Linear Motion shaker. All shaker screens can be fit on shakers by wedge blocks or hooks. Meanwhile we can customize according to customer’s demand, linear motion, or balanced elliptical motion and double-track movement.
TRZS585 shale shaker, drilling fluids shale shaker, mud shale shaker for sale
Specification of TR Linear Motion Shaker:
| Model | TRZS703 | TRZS2000 | TRZS585 |
| Vibrating Model | Linear | Linear | Linear |
| Motor Power | 2×1.5KW | 2×1.72KW | 2×1.72KW |
| Vibrating Strength | ≤7.0G | ≤7.5G | ≤7.5G |
| Amplitude | 6.0~7.2mm | 6.0~7.2mm | |
| Capacity | 527GPM | 615GPM | 615GPM |
| Deck Adjustment | -1°~5° | -1°~5° | -1°~5° |
| Screen of Deck | 3 | 3 | 4 |
| Electric | 380V/50HZ,460V/60HZ or Customized | ||
| Decibels | <85db | <85db | <85db |
| Ex Standard | ExdIIBt4 / IEC EX/ ATEX | ExdIIBt4 / IEC EX/ ATEX | ExdIIBt4 / IEC EX/ ATEX |
| Dimension | 2800X1785X1750 | 2800X1600X1690 | 2800X1600X1690 |
| Weight | 1550kg | 1850kg | 1750kg |
| Remarks | Treating capacity test from mud 1.2g/cm ³density,viscosity45s﹠60mesh screen | ||
Solids control shale shaker, shale shaker for mud cleaning, factory price shale shaker
Above all, as the main professional manufacturer of solids control equipment in China, TR Solids Control is well-known for linear motion shale shaker. In addition, we also supply balanced elliptical motion shale shaker, drying shaker and other solids control product like decanter centrifuge, mud cleaner, mud agitator, mud gun, jet mud mixer, centrifugal pump, screw pump, also submersible slurry pump, etc. If any inquiry lately, please contact with us!
