Composite Shaker Screens Delivered to Old Customer
In oil gas and HDD industry, shaker screens are common spare parts of shale shaker, mud cleaner, desander and desilter. At the beginning of February, we completed the package and shipment of Mongoose type composite shaker screens for our old customer. They will be used on our shale shaker and mud cleaner in client’s horizontal directional drilling site.
Composite shaker screens will be shipped for old customer.
Size of this batch shaker screen is 585*1165mm, with mesh ranges from API 100 to API 170. This kind of screen is widely used in Swaco Mongoose shale shaker with wedge fastening device. It provides a significant increase in fluid capacity as well as excellent resistance to blinding providing dryer solids discharge and a larger net usable screen area. These screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers, steel backing plate and steel frame combined together. Because of different mesh size and hole size, it could get an better filtering effect.
Shaker screens will be used on TR mud cleaner and shale shaker.
TR shale shaker screens are available for Derrick FLC Series, Brandt VSM, King Cobra Series, Swaco Mongoose and KEM-TRON shale shakers. We accept customized shale shaker screen as well. Till now, we have been the leading China OEM supplier of quality with high performance screening surfaces for over 10 years. Our shaker screen has exported to many countries like Egypt, Thailand, US, Pakistan, Dubai, Iraq, Nigeria, Canada and so on.
Contact Us: Maggie Xian|Sales Manager
Sales office: No.10 West of North 2nd Ring Road Xi’an City.
Factory Add.: No.60 Caotang Industry Zone Huxian County Xi’an City.
Tel：+86-29-86332919
Mob.：+86-13186019625
E-mail: maggie@trsolidscontrol.com
Web: www.trsolidscontrol.com
www.drillingmud-system.com
Mud Cleaner Shipped to Thailand
TRQJ250×2S-100×14N mud cleaner was completed in advance and arranged for delivery at last week. It has shipped to our Thailand customer. Mud cleaner is composed of shale shaker, desander and desilter mixed solid-liquid separation equipment through holder combined. It’s the second and third stage solid-liquid separation equipment in mud circulation system. It can further separate the smaller solid phase contained in mud processed by shale shaker, so that slurry can enter the fourth stage separation equipment, and separate the harmful solid phase in drilling fluid effectively. It could improve the performance of drilling fluid, and also meet the requirements of high-pressure jet drilling.

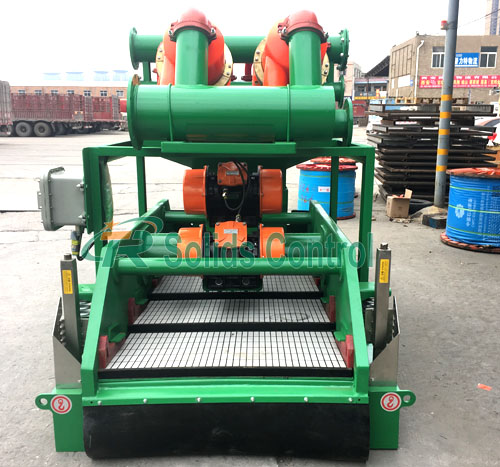

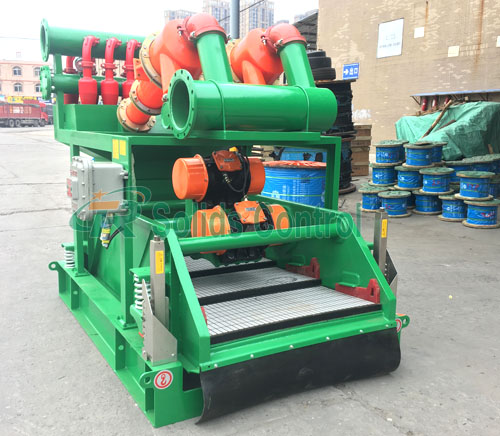

TRQJ250×2S-100×14N mud cleaner will be sent to Thailand.
The overall processing capacity of mud cleaner ordered by the customer is 240m3/h. According to design requirements, the bottom shaker is matched with TRZS584 linear motion shaker(screen size: 585mm× 1165mm×4 pcs). Motor is matched with Martin motor, power is 1.865kw×2pcs. Desander cyclone is 2pcs 10-inch polyurethane cyclones, and desilter cyclone is 14pcs 4-inch cyclones replaceable with Derrick cyclones. TR mud cleaner can be used alone, and its bottom shaker can also be used as parallel standby equipment of the first stage solid control shale shaker.
TR mud cleaner will be used in horizontal directional drilling.
Our mud cleaners are designed to handle the entire circulating volume to remove and dry solids while retaining premium base fluid. At present, it is widely used in trenchless HDD, tunneling construction, city bored piling, oil & gas drilling, environment protection, coal bed gas solids control system, mining, water drilling etc. It has already been exported to USA, South America, Africa, Middle East, Southeast Asia, Ukraine, Russia and some other countries and regions.
